Electric Motorized Trolley, 115V-1Ph, Cat.#MTF-100, Single Speed @ 79 FPM, fits Blackbear 1 ton hoists
|
David Round RailRunner Tractor Drive, Model #E1, 2000 lbs. Capacity, H4 Duty, Speeds from 40 to 210 fpm (specify when ordering),
230/460V-3Ph-60Hz, less pendant. For Indoor Applications. Trolley wheel is adjustable to fit 3.00" to 5.00", 1/2 HP Motor, Controls include contactor,
Thermal overload relay, and control transformer
|

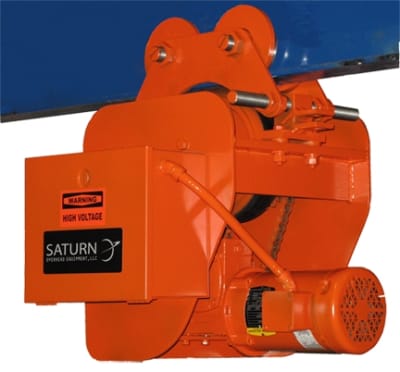

SATURN T-144 Drivetractor - 6000 Lbs. Capacity
STANDARD FEATURES: T-144 and T-150 MODELS
•Capacity Range: 1 to 20-Ton
•Speed Range: 15 FPM to 200 FPM
•Beam Types: W-Shape, S-Shape and Patented Tracks
•Std Flange Width for T-144: 2” to 8” (Adjustable)
•Std Flange Width for T-150: 3-1/4” to 10” (Adjustable)
•4 Ft Min. Radius Curve for T-144
•6 Ft Min. Radius Curve for T-150
•T-144 Model will pass through most monorail switches and interlocks
•Worm Gear Drives
•Tractor Motor is rated Continuous Duty (Suitable for VFD Operations above 15 HZ)
•Tractor Motor is TEFC with Class B Insulation
•Primary Voltages: 208, 230 or 460V-3PH-60HZ
•NEMA 1 Enclosure for Indoor Service
•Basic Single Speed Controls: Reversing Contactor(s), Transformer, Terminal Strip
•Secondary Voltage: 115V
•Adjustable Trolleys
•Factory Balanced with Mounted Controls
•Tow Bar with Hardware
•Rubber Drive Wheel
•Safety Orange Paint
•ONE Year Warranty
•Quality Construction
•Made in the USA
Call for Technical Sales Assistance. We can size the drivetractor to your specific application.
Toll Free (888) 791-9686
|
