Harrington Short Span Lifting Beam
|
|
Harrington Standard Duty Lifting Beam
|
|
Harrington I-Beam Design Spreader Beam
|
|
|
|
|
|
|
|
|
■ This style of lifting beam is ideal for short span applications and can
be utilized where headroom is limited.
■ Supplied with a pair of shackles and one standard spread.
■ Engineered and manufactured to ASME B30.20 & BTH-1 Design
Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity and
certificates supplied at No Additional Charge.
■ Made in USA Call (888) 791-9686 for pricing.
|
This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard
spreads (3’ and 4’ beams have two standard spreads).
■ Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
■ Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686 for Pricing.
|
This style of lifting beam can be utilized where headroom
is limited and comes with a pair of shackles & swivel hooks
with three standard spreads.
■ Standard I-Beam construction with integrated beam stands.
■ Three standard lift points for load adjustment: outside lift
point, middle lift point (outside less 1’), inside lift point
(middle less 1’).
■ Engineered and manufactured to ASME B30.20 & BTH-1
Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof Tested
to 125% capacity and certificates supplied at
No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
|
|
|
Harrington I-Beam Design Spreader beam with Pin Bail
|
|
Harrington Basket Sling Lifting Beam
|
|
Harrington Dual Crane Lifting Beam
|
|
|
|
|
|
|
|
■ This style of lifting beam can be utilized where headroom is limited & comes with a pair of shackles and three standard spreads.
■ Standard I-Beam construction with pin bail & integrated beam stands.
■ Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
■ Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
■ Made in USA Call (888) 791-9686 for pricing.
|
■ This style of lifting beam can be utilized where
headroom is limited with slings in a basket hitch.
■ Includes two sets of fixed hooks (3’ and 4’ beams
have one set of hooks).
■ Two standard lift points for load adjustment;
outside lift point & inside lift point (1/2 the
overall length).
■ Engineered & manufactured to ASME B30.20 &
BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to
125% capacity & certificates supplied at No
Additional Charge.
■ Made in USA Call (888) 791-9686 for pricing.
|
This style of lifting beam is utilized with
two cranes, where headroom is limited,
and comes standard with a swivel hook.
■ Roller bearing hook standard on
capacities 30 tons and over.
■ Engineered and manufactured to ASME
B30.20 & BTH-1 Design Category B
Service Class 2.
■ 100% of ALL lifting beams are ProofTested to 125% capacity and certificates
supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
|
|
|
Harrington Universal Lifter/Spreader Beam
|
|
Harrington Adjustable Spreader Beam
|
|
Harrington Adjustable Bail Lifting Beam
|
|
|
|
|
|
|
|
This style of universal beam can be
utilized as a lifting beam where headroom
is limited or a spreader beam where extra
stability is required.
■ As a lifting beam, the upper lift point
can be easily adjusted to lift an off center
load.
■ Can be configured as an optional three or
four point lifting system
■ Can be supplied with optional chain top
rigging.
■ Supplied with one upper shackle for
adjustable bail positions and two lower
shackles for adjustable spreads.
■ Engineered and manufactured to ASME
B30.20 & BTH-1 Design Category B
Service Class 2.
■ 100% of ALL lifting beams are ProofTested to 125% capacity and certificates
supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
■ This style of lifting beam can lift off
center loads easily by adjusting the
bail prior to the lift.
■ This lifter can be used where
headroom is limited, & comes with
multiple spreads that are adjustable
to accommodate various load sizes
at 6” adjustable increments.
■ Supplied with two lower shackles.
■ Engineered and manufactured to
ASME B30.20 & BTH-1 Design
Category B Service Class 2.
■ 100% of ALL lifting beams are
Proof-Tested to 125% capacity
and certificates supplied at
No Additional Charge.
■ Made in USA
Call (888) 791-9686 for pricing.
|
■ This style of lifting beam can lift off center loads easily by adjusting the bail prior to the lift.
■ This lifter can be used where headroom is limited, & comes standard with one outside spread and two swivel hooks
(additional spreads & swivel hooks are available).
■ Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
|
|
|
Harrington Load Leveling Beam
|
|
Harrington Four Point Adjustable Beam
|
|
Harrington Chlorine Gas Cylinder Lifting Beam
|
|
|
|
|
|
|
|
This style of lifting beam can lift off center loads
easily by adjusting the bail with the standard
chain wheel prior to the lift and has unlimited
adjustment within the span of the bail.
■ This lifter can be used where headroom is
limited, and comes standard with one outside
spread and two swivel hooks (additional spreads
and swivel hooks are available).
■ Engineered and manufactured to ASME B30.20
& BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested
to 125% capacity and certificates supplied at
No Additional Charge.
■ Made in USA.
Call (888) 791-9686 for pricing
|
This standard four point adjustable spread style of lifting beam can be utilized where headroom is limited and when lifting
objects that require multiple lift points.
■ Supplied with four swivel hooks.
■ Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
■ This style of lifting beam is designed to lift chlorine gas cylinders.
■ Low headroom design.
■ Smooth edge design to minimize wear on lifting straps.
■ Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
■ 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
■ Made in USA. Call (888) 791-9686
|
|
|
|

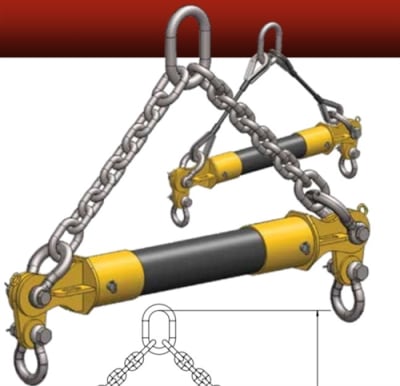

Harrington End Cap Spreader Beam
|
|
Harrington Coil Lifter / Narrow Coil
|
|
Harrington Coil Lifter
|
|
|
|
|
|
|
|
This style of lifter is utilized with upper rigging
spread between two lift points that adds extra
stability to the lift.
■ This spreader beam should be utilized where
headroom is not limited and comes standard with
upper and lower shackles.
■ Standard pivoting lifting lugs provide the flexibility
of a 75° to 90° lower rigging angle.
■ Can be supplied with optional chain or wire rope
top rigging.
■ Engineered and manufactured in accordance to
ASME B30.20 & BTH-1 Design Category B Service
Class 2.
■ 100% of ALL end cap spreader beams are ProofTested to 125% capacity and certificates supplied at
No Additional Charge.
■ Made in USA. Call (888) 791-9686 for pricing.
|
This style of lifter is designed to easily lift and position
narrow coils by placing the lifting arm securely through
the I.D. of the coil.
■ Supplied with standard lifter guide handle and radius
on lifting arm to minimize coil damage.
■ Engineered and manufactured to ASME B30.20 &
BTH-1 Design Category B Service Class 2.
■ 100% of ALL coil lifters are Proof-Tested to
125% capacity and certificates supplied at
No Additional Charge.
■ Made in USA
Call (888) 791-9686 for pricing
|
This style of heavy duty lifter is designed
to easily lift and position large heavy
coils by placing the lifting arm securely
through the I.D. of the coil.
■ Supplied with standard lifter guide
handle and curved saddle on lifting
arm to minimize coil damage, optional
padding is available for additional coil
protection.
■ Counterbalanced to hang level when
not loaded.
■ Engineered and manufactured to ASME
B30.20 & BTH-1 Design Category B
Service Class 2.
■ 100% of ALL coil lifters are Proof-Tested
to 125% capacity and certificates
supplied at No Additional Charge.
■ Made in USA.
Call (888) 791-9686 for pricing
|
|
|
|
Adjustable Spreader Beam, 500 lb., 48 In
|
|
Fiberglass Battery Spreader Beam 4000 Lbs.
|
|
Fiberglass Battery Spreader Beam 7000 Lbs.
|
|
|
|
|
|
|
|
Caldwell Adjustable Spreader Beam, 500 Lbs. Capacity
Adjustable Lifting/Spreader Beam, Working Load Limit 500 lb., Max. Spread 48 In., Min. Spread 12 In., Headroom 7 In., Overall Length 48 In., Standards ASME B30.20 and BTH-1, Includes Top Lifting Shackle and Two Load Shackles
|
Caldwell ECH8N230 Fiberglass Battery Spreader Beam 4800 lbs. Capacity
Battery Lifting Beam, Beam Style Adjustable Length, Working Load Limit 4800 lb., Headroom 39 In., Max. Spread 42 In., Min. Spread 30 In., Overall Length 36 In., Hook Opening 1 In. with Latch, Material Fiberglass, Upper Bail Length 7-1/4 In., Upper Bail Width 4-1/4 In., Usable Upper Bail Length 6 In., Usable Upper Bail Width 3 In., Includes Acid-Resistant, Coated Polyester Top Rigging and 10 In. Drop Slings with Swivel Hooks
|
Caldwell ECH8AJD4 Capacity Fiberglass Battery Spreader Beam 7000 Lbs. Capacity
Battery Lifting Beam, Beam Style Adjustable Length, Working Load Limit 7000 lb., Headroom 40-1/2 In., Max. Spread 42 In., Min. Spread 30 In., Overall Length 36 In., Hook Opening 1-1/8 In. with Latch, Material Fiberglass, Upper Bail Length 6-3/4 In., Upper Bail Width 4 In., Usable Upper Bail Length 5-1/2 In., Usable Upper Bail Width 2-3/4 In., Includes Acid-Resistant, Coated Polyester Top Rigging and 10 In. Drop Slings with Swivel Hooks
|
|
|
|
Lifting Magnet - 2200 Lbs. - MagMate
|
|
Low Headroom Fiberglass Spreader Beam 7000 Lbs.
|
|
|
|
|
|
|
|
|
Easy to use Lifting Magnet, Permanent Type, Lifting Capacity Flat Steel 2200 Lb, Min. Steel Thickness 2 In., Lifting Capacity Round Steel 1100 Lb, Overall Length 12 5/8 In, Magnet Length 10 5/8 In, Magnet Width 7 1/8 In, Magnet Height 6 1/2 In, Conforms to ASME B30.2
|
Caldwell ECH5TDK2 Low Headroom Fiberglass Spreader Beam 7000 Lbs. Capacity
Battery Lifting Beam, Beam Style Low Headroom, Working Load Limit 7000 lb., Headroom 18-1/4 In., Max. Spread 45 In., Min. Spread 24 In., Overall Length 50 In., Material Covered Steel, Upper Bail Length 3-1/2 In., Upper Bail Width 3-1/2 In., Usable Upper Bail Length 2-1/4 In., Usable Upper Bail Width 2 In., Includes Acid-Resistant, Coated Polyester Straps with Swivel Hooks
|
|
|
