SATURN T-144 DRIVETRACTOR
SATURN T-144 DRIVETRACTOR

Our Price: $3,617.00


Availability:: Usually Ships in 2 to 4 Weeks
Product Code: T-144
Qty:

Description

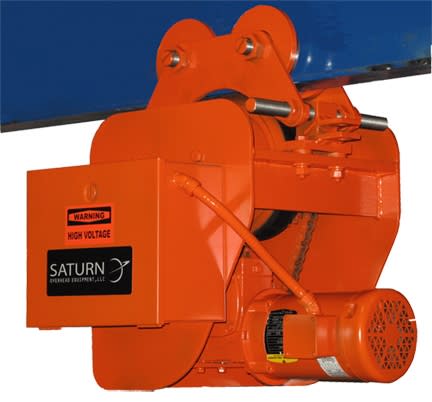

SATURN T-144 Drivetractor  - 6000 Lbs. Capacity


STANDARD FEATURES:  T-144 and T-150 MODELS
•Capacity Range:  1 to 20-Ton
•Speed Range:  15 FPM to 200 FPM
•Beam Types:  W-Shape, S-Shape and Patented Tracks
•Std Flange Width for T-144:  2” to 8” (Adjustable)
•Std Flange Width for T-150:  3-1/4” to 10” (Adjustable)
•4 Ft Min. Radius Curve for T-144
•6 Ft Min. Radius Curve for T-150
•T-144 Model will pass through most monorail switches and interlocks
•Worm Gear Drives
•Tractor Motor is rated Continuous Duty (Suitable for VFD Operations above 15 HZ)
•Tractor Motor is TEFC with Class B Insulation
•Primary Voltages: 208, 230 or 460V-3PH-60HZ
•NEMA 1 Enclosure for Indoor Service
•Basic Single Speed Controls: Reversing Contactor(s), Transformer, Terminal Strip
•Secondary Voltage: 115V
•Adjustable Trolleys
•Factory Balanced with Mounted Controls
•Tow Bar with Hardware
•Rubber Drive Wheel
•Safety Orange Paint
•ONE Year Warranty
•Quality Construction
•Made in the USA


Call for Technical Sales Assistance.  We can size the drivetractor to your specific application.
